ISO-16505 Test Chart Set

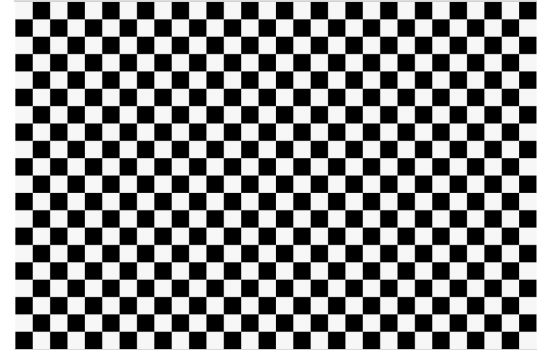

The ISO-16505 bundle is made up six charts that are mentioned in various parts of the ISO-16505, Road vehicles — Ergonomic and performance aspects of Camera Monitor Systems standard.


This set of charts is available in three standard sizes: 2x, 4x and 5.5x. Select the ISO size you need based on the table below. The 2x size replicates the charts as closely as possible to what is described in the standard. The 5.5x is the maximum size Inkjet possible. Custom sizing is available upon request.
