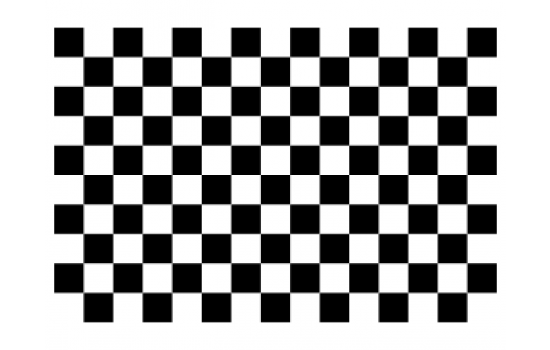

Checkerboard Distortion Test Target for Microsoft© Lync™ Certification
This chart has 10 divisions high quality ink jet printer on matte paper.
Details
The chart is on A3 sized paper which is 297mm x 420mm (11.5″ x 16.5″).
Read more about the Lync compatible devices program from Microsoft.
For further information, see the Lync PC Test Specifications Page where you can download LyncLogoRevF.zip which contains MLVideoCaptureSpecificationRev_F_Final.pdf where this chart is referenced on pages 64 and 66.
Documentation and software support
Checkerboard can be run either through the highly-interactive Rescharts interface or as a batch-capable fixed module. The key documentation for getting started is Using Checkerboard Part 1, found in the Checkerboard section of the Documentation page. Checkerboard provides the most accurate distortion measurements.
