Imatest Frame for Chrome on Glass Targets

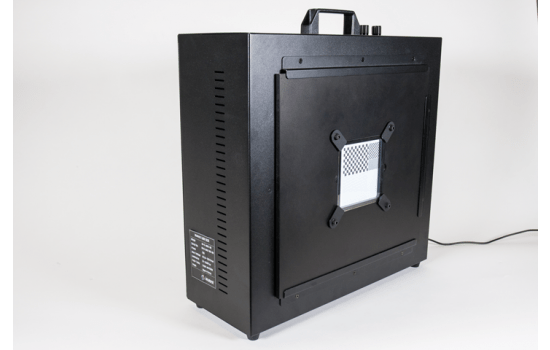

This matte black acrylic frame is designed specifically for ultra high resolution testing using a Chrome on Glass Target with Imatest’s uniform light sources, the Imatest Lightbox and Imatest Light Panel up to Size C. The frame can also be configured for the Gamma Scientific Spectral LED RS-7 Uniform Light Source.

The Chrome on Glass Frame is available for all sizes of chrome on glass targets. This provides a solution for ultra-high resolution testing with a uniform light source.

Details

This matte black acrylic frame is designed specifically for ultra high resolution testing using a Chrome on Glass Target with the Imatest Lightboxes and Imatest Light Panels up to Size C. It can also be configured for the Gamma Scientific Spectral LED RS-7 Uniform Light Source.

Light Source	Specifications
Imatest LED Lightboxes and Imatest LED Light Panels	For all Chrome on Glass plate sizes High-Repeatability configuration: Solid, three-layer acrylic frame Custom machined for each Chrome on Glass target Interfaces with lightbox rails for quick target changing Optional adjustable configuration: Includes holding tabs for interchanging chrome on glass targets Machined from 6061 aluminum plates Includes all necessary tools Available for Imatest Lightboxes and Light Panels up to Size C
Gamma Scientific RS-7 Uniform Light Source	For Chrome on Glass plate sizes up to 100mm x 100mm (4” x 4”) Maximum active area: 53mm x 53mm (2” x 2”) High-Repeatability configuration: Includes fastening tabs for fixed target location Custom machined for each Chrome on Glass target Repeatable target location up to .1mm (.005”) Includes captive fasteners for quick target changing Machined from a 6061 aluminum plate Includes all necessary tools
Other	Customizable for other light boxes.

Light Source

Specifications

Imatest LED Lightboxes

and

Imatest LED Light Panels

For all Chrome on Glass plate sizes
High-Repeatability configuration:
- Solid, three-layer acrylic frame
- Custom machined for each Chrome on Glass target
- Interfaces with lightbox rails for quick target changing
Optional adjustable configuration:
- Includes holding tabs for interchanging chrome on glass targets
- Machined from 6061 aluminum plates
- Includes all necessary tools
Available for Imatest Lightboxes and Light Panels up to Size C

Gamma Scientific RS-7 Uniform Light Source

For Chrome on Glass plate sizes up to 100mm x 100mm (4” x 4”)
Maximum active area: 53mm x 53mm (2” x 2”)
High-Repeatability configuration:
- Includes fastening tabs for fixed target location
- Custom machined for each Chrome on Glass target
- Repeatable target location up to .1mm (.005”)
- Includes captive fasteners for quick target changing
Machined from a 6061 aluminum plate
Includes all necessary tools

Other

Customizable for other light boxes.

Chrome On Glass Target Options:

SFRplus Target Chrome on Glass
eSFR ISO Chrome on Glass Target
Micro Multi Slide Dot Pattern and Checkerboard Chart
Available for custom Chrome on Glass Targets

Imatest Frame for Chrome on Glass Targets

Details
