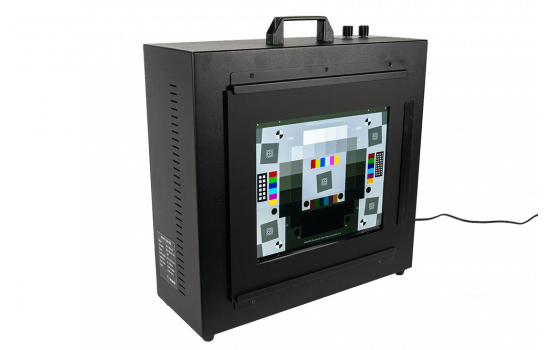

Imatest LED Lightbox – Multi-channel NIR options
The Imatest LED Lightbox produces uniform light with excellent spectral characteristics that can be adjusted over a wide range of brightness for illuminating transparency test charts.
- Two standard sizes
- Two channels with mixed mode (one VIS & one NIR or two NIR). Visible Light Only options also available.
- Visible 30 ~ 10,000 lux and NIR 2 ~ 20 W/m2
- 95% uniformity on Size B and 93% uniformity on Size C in Visible Spectrum. 90% uniformity in NIR.
Use the Lighting Control feature in Imatest Version 2020.1, connecting with WiFi or USB. The uniformity, adjustability, and high color quality make it superior lighting to other LED or fluorescent systems we’ve seen. Uniform Light Source Comparison
Email sales@dhd.com.tw with any questions.
Details
| Size | Diffuser Panel Size / External Dimensions | Intensity Options | Channels | Illuminant Options | Uniformity |
| B | 260mm x 220mm (10.24″ x 8.66″) 400mm x 380mm x 150mm (15.7” x 15” x 7.9”) |
30 ~ 10,000 lux
NIR 2 ~ 20 W/m2 |
Multi (Dual) Channel with Mixed Mode
(In mixed mode, minimum lux increases to 200.) |
Select from: One Visible & one NIR channel: (5100K & 850nm)orTwo NIR Channels: (850nm & 940nm) |
95% in Visible Spectrum. 90% in NIR |
| C | 432mm x 305mm (17″ x 12″) 600mm x 490mm x 150mm (23.6” x 19.3” x 7.9”) |
93% in Visible Spectrum. 90% in NIR |
Control
- Manual
- USB
- WiFi
Power
- 20W
- 110V
- 220V
Most Imatest test charts are available in specific sizes to fit the Imatest Lightboxes. The target is mounted on clear acrylic for ease of use with the Lightbox rails. Charts include SFRplus, eSFR-ISO, Checkerboard, Spilled Coins, and ISO 18844 Flare targets. If you are interested in a mounted target for your Imatest Lightbox, email sales@dhd.com.tw
