Imatest Modular Test Stand
The Imatest Modular Test Stand is an easy-to-use platform for image quality testing that is purpose-built for a professional lab setting.
Add an Imatest Light Panel or the Reflective Lighting Module with Kino Flo LED Lights for a system that needs only a target and your camera.
Or add our Wide Field of View Module to enable fast and efficient testing of WFOV systems.
See MTS info sheet.

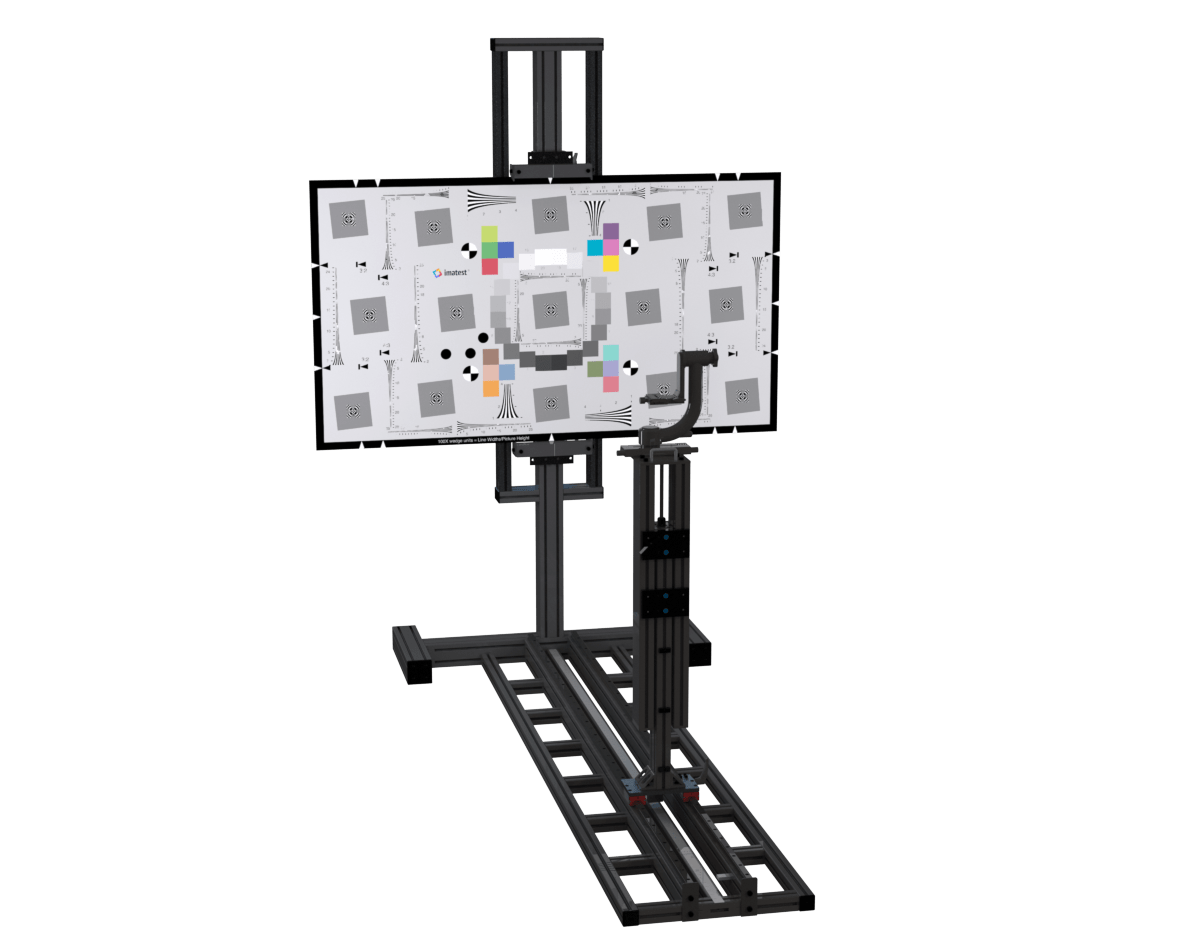

The Imatest Modular Test Stand base module is manually adjustable and features a rail system for easy positioning, a tripod head or gimbal head for mounting of device, and a chart holder that accommodates a variety of charts. The Modular Test Stand facilitates precise setup and repeatability in your test lab. (Light source and test charts sold separately.)
- Enable tilt and rotation measurements by controlling the alignment between the camera and chart.
- Includes Bosch BLAZE™ GLM 42 135 Ft. Laser Measurer. This rangefinder is accurate to ±1.59mm (1/16″).
- Reduce the time spent setting up your test environment.
- Configure the test stand to your camera system.
- Integrate reflective lighting and wide-FoV targets customizations are available upon request.
Rail System
- Rail length – 1m (39.37″), 2m (78.74″), 3.5m (137.79″)
- Camera mounts – Promaster Gimbal mount or Manfrotto 410 head
- Integrated Tape Measure for quick reference of camera position relative to the chart
- Laser range finder for accurate positioning
- Camera post is dampened for easy adjustment of camera height
- X-axis adjustable (120mm; “4.72”) Manfrotto 454 micrometric positioning sliding plate
- Drag chain and clips for cable management
Chart Holder
- Adjustable chart height
- Compatible reflective charts sizes – Min: 21.58cm x 27.94cm (8.50″ x 11″); ColorChecker, Max: 110cm x 144cm (43.31″ x 56.69″)
- Light panel sizes – C through G. A and B available with adaptor (contact for details)
Specifications
- Weight: Default Option (2m Rail): ~180 lbs (82kg)
- Overall dimensions: Default Option (2m Rail): 2083mm long x 1000mm wide x 2020mm high (82″ long x 39.37″ wide x 79.53 high)
- Camera Tilt:
- Tripod Head: Pitch: -30° / +90°, Roll: -90° / +30°
- Gimbal: Pitch: 360°, Roll: 0°
- Camera Rotation:
- Tripod Head: 360°
- Gimbal Head: 300°
- X-axis adjustment: 120 mm (4.72″)
- Reflective chart size range: Min: 21.58cm x 27.94cm (8.50″ x 11″), Max: 110cm x 144cm (43.31″ x 56.69″)
- Transmissive chart size range: Imatest LED Light Panel C through G
- Rail length options: 1m (39.37″), 2m (78.74″), 3.5m (137.79″)
- Material: anodized 6105-T5 Aluminum
Custom options include:
- Custom camera mount
- Custom rail length
- Lighting integration (6 Week Lead Time)
Imatest MTS Reflective Module
Details
- Weight: 54 kg
- Total shipped weight with crate: 92 kg
- Width when fully extended: 3100mm
- Travel distance of lights 1000mm (minimum distance from chart = 250mm, max distance from chart = 1250mm)
- Physical indicators to mark positions
- Angle indicators to determine incident light angles.
- Easy and dampened (for safety) height adjustment
- Works with Kinoflo Freestyle 31s
Imatest MTS Wide Field of View Module
Details
The Imatest Reflective Wide Field of View Module is an add-on to our Modular Test Stand base. It adds mounting points for 4 reflective SFRreg targets to the outside of the base, as well as a sliding light post for mounting KinoFlo LED lights in a way that allows for sufficiently uniform illumination of all 5 test charts. Imatest SFRreg targets can be affixed in a polar relationship to the camera rail and adjusted in distance, angle, and height. The arms rest on lockable casters to move with the camera rail. Mounting points for Isolight Pucks allow for easy light measurements to ensure proper uniformity. This module includes one Isolight Puck with the option to add four additional Pucks. This system allows you to analyze captured images in Imatest software to better characterize wide field of view cameras.
- Allows for WFOV testing for cameras with diagonal FOVs between 140º – 200º
- Test distances between 0.5m – 1.5m
- Polar coordinate system
- Efficient and easy adjustments
- Easy uniformity measurements
- Modular Test Stand (MTS) Base module, Kino Flo Lights and Test Charts are sold separately.
Specifications:
- Weight for RWFOV Module (not including base module, charts or lights): 173lb / 79kg; Crated: 328lb / 149kg
- Overall fixture dimensions for full width max setup: Length: (Length of MTS Base Module) x Width: 3.38m x Height (2.04m)
- Crated dimension: 20.03m x 0.61m x 0.53m
- Testing distances range: 0.5m – 1.5m @ 3:2 or 16:9 camera aspect ratio
- Material: Black anodized 6105 T5 Aluminum
- Includes one Isolight Puck with cable
- Lead Time: 8 weeks
Recommended Chart Sizes:
- Testing under 1m with <160º FOV: 4 Outer targets: SFRreg – Size 0.5x, 1 Center Target: eSFR ISO – Size 2x
- Testing under 1m with >160º FOV: 4 Outer targets: SFRreg – Size 1x, 1 Center Target: eSFR ISO – Size 2x
- Testing over 1m: 4 Outer targets: SFRreg – Size 1.5x, 1 Center Target: eSFR ISO – Size 4x
