Sofica Chart Selector

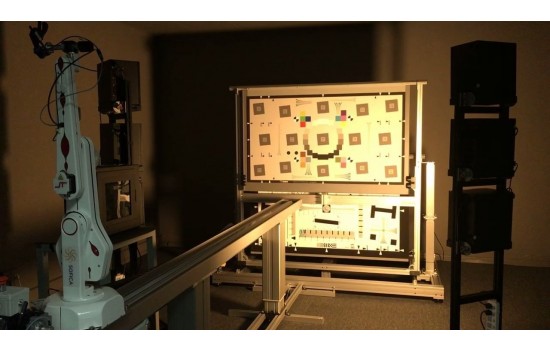

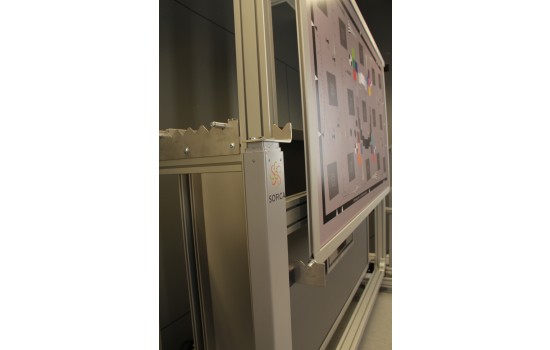

The Sofica Chart Selector is an automated chart changing system consisting of a motorized module to move different test chart panels into the camera measurement area. The design and the Selector control software ensure that each chart will be placed in the same precise position.
Details
| Backpane size: | Standard 1700mm x 1020mm (67″ x 40″); customizable |
| Backpane color: | 18% Neutral Grey (Munsell N5) |
| Number of charts: | Supports 10 test charts (customizable) |
| Control method: | RJ45, WiFi (web-based user interface) |
| SDK: | html, python, C++ API |
| Environment: | 20-30C |
| Power Supply: | 110V / 230V |
| Safety: | Piezo collision detector and emergency stop by default. Optional: laser curtain, pressure mattress, etc. |
| Speed: | ~1-minute switch cycle |
Download Video Here
