Details

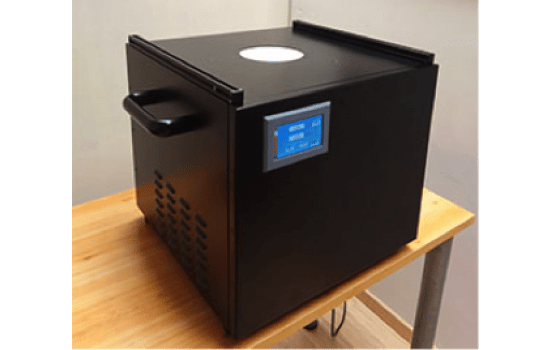

Models: The LB2 Spherical Lighting System is available in three models. An optional camera mount works with each model.
- LB2-S has a single color temperature. Light source options are 2800K/5000K/6500K/IR. 30-10,000 lux (Measured at center of sphere).
- LB2-D has adjustable color temperature from 2800K – 6500K (Standard). Adjust X1, X10, X100/Step.
- LB2-HDR has a single color temperature but illuminance 200 to 50,000 lux (10,000 levels).
FOV: 270°-300° (Customizable for higher FOV).
CRI: 93~96, measured at maximized luminance.
Uniformity: Spherical space distribution of LED and ball shade diffuser. Up to 200° > 95% uniformity. Greater than 200° > 90% uniformity.
Endosphere Diameter: Standard 20cm (7.87″); can be customized.
Entrance Hole Diameter: Standard 12cm (4.72″); can be customized.
Control Method: Touch Screen / USB.
Dimension: 40cm (15.75″) x 40cm (15.75″) x 36cm (14.17″); i.e., length x width x height
Operation Environment: 15-30°C, Humidity 30-60%.
Optional open API or Control Software (Light Control V2.0 to control luminance and color temperature; support multiple units at once).
An optional camera mount allows you to lower a camera down into the center of the inner sphere.
